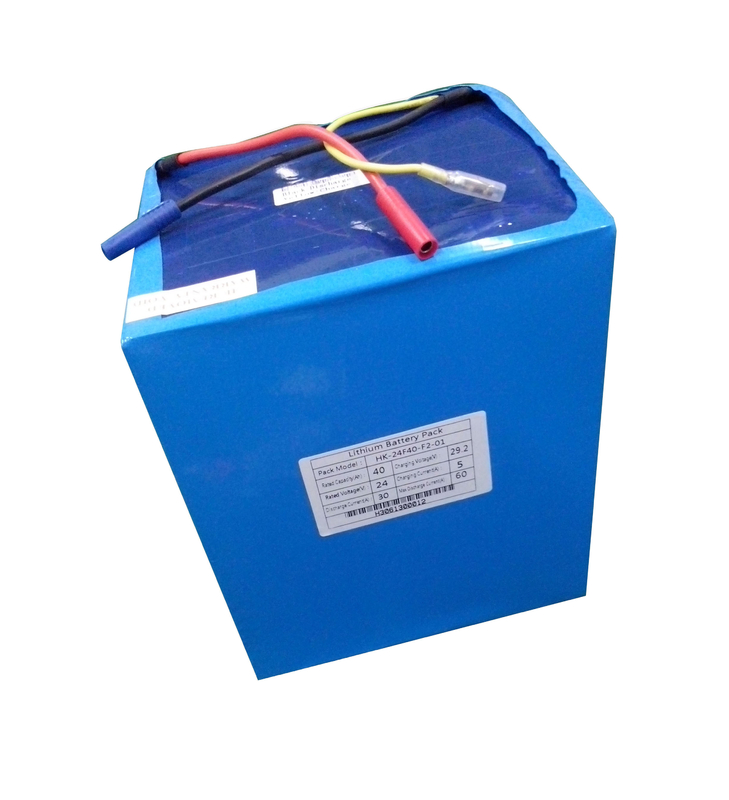

24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life

Customer Reviews
Good! HECO lithium batteries are of good quality and reasonable in price. I’d like to cooperate with such partner.

—— Jan Jacobsen

We are happy to get acquaintances with HECO. They are very professional!

—— Zhamal Ramazanov

HECO has a good supply chain of cells as well as other components. They always can supply me what i want.

—— Marco Dini

I'm Online Chat Now

24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life

24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life
24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life

Large Image :  24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: CE,RoHS ,UN38.3, ISO
Model Number: HC-24F40-B
Payment & Shipping Terms:
Minimum Order Quantity: 10 Packs
Price: Negotiable
Packaging Details: 1 pack/carton
Delivery Time: Sample: within 15 days;bulk order:25~60 days, based on the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal
Supply Ability: 2000 packs/ month

24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life

Description
Features: Compact Size, Light Weight, Long Cycle Life Nominal Voltage: 24V
Nominal Capacity: 40AH Applications: Electric Scooter, Electric Wheelchair, Solar System
Dimensions: 205*125*220mm Weight: 8.5KG
High Light:

24V Lithium-Ion Battery Pack

,

Lithium Polymer Battery



24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life



Quick Detail:



1. Soft-pack LiFePO4 cells inside
2. Compact in size and light in weight

3. BMS manages to each cell for high reliability
4. Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
5. Extremely safe: No explosion, no fire under collision, over charged or short circuit





Why to choose us become your supplier?



1.Professional lithium-ion battery pack for over 5 years.

2.Strong R&d team to support.

3.Only make high quality battery

4.BMS solution come from NSK and Recoh.

5.Offer OEM service for customer small order.

6.Quickly action & respond.

7.Best sale service and good price.

8:All of us,working hard.





Description:



24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life



Li-FePO4 battery modules and BMS solution:

Our company was a manufacturer of Li-FePO4 cells, we make and developing Battery Management Systems(BMS) battery solution, our battery modules have:

24v 8Ah, 24v 10Ah, 24v 20Ah, 24v 40Ah24v 50Ah

We build standard modules 24V, 36V, 48V, 72V...etc, and support different energy BMS solutions to our customers.





Basic knowledge:



Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.

Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.

All these lithium ion batteries have their own advantages.



Different Lithium Battery Material Comparision Table
NO. Parameters  Li-Co2 Li-NiCoMn Li-MnO2 LiFePO4
1 Energy density    (g/cm3) 2.8~3.0 2.0~2.3 2.2~2.4 1.0~1.4
2 Specific area         (m2/g) 0.4~0.6 0.2~0.4 0.4~0.8 12~20
3 Capacity density     (Ah/kg) 135~140 155~165 100~115 130~140
4 Voltage 3.7 3.6 3.6 3.2
5 Cycle life >300 >800 >500 >2000
6 Transition metal Poor Poor Rich Very rich
7 Material cost Very high High  Cheap Cheap
8 Environmental performance Contain Co Contain Co & Ni Non-toxic Non-toxic
9 Safety performance Bad Good Better Excellent
10 Application area Small battery Small battery          Small power battery Power battery Power battery Large capacity power supply



From this table chart, we can see Lifepo4 battery has the most excellent comprehensivize performances.





Specifications:



Item

Description

Nominal Voltage

24V

Rated Capacity

40Ah

Pack Dimension

205*125*220mm

Internal Impedance

≤100mΩ

Charging Mode

CC/CV

Pack weight

About 8.5kg

Rated Discharging Current

20A

Peak Discharging current 40A
Rated charging current 8A

Cycle Life

≥1500 Cycles @ 80%DOD

Charge Temperature

0-45 ℃

Discharge Temperature

-20-60 ℃

The data on the table is only for reference

               24V Lithium Ion Phophate Battery Pack , 40AH Rated Capacity With 1500+ Cycle Life 0



Company advantages:



1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.





Tag: 24V 40AH lithium battery pack, 24v LiFePO4 battery, 40ah lithium ion phosphate batteries
