Product Details:
|
| Voltage: | 3.2V | Capacity: | 4000mah |
|---|---|---|---|
| Dimensions: | 26700 | Weight: | 88g |
| Discharge Rate: | 2C | Charge Rate: | 1C |
Overview:

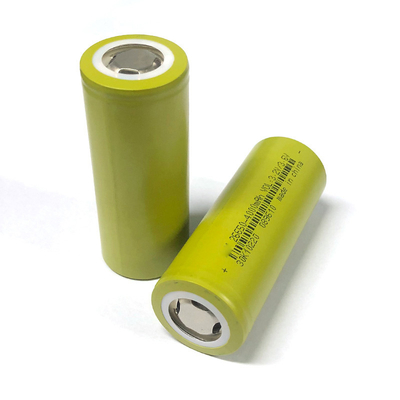

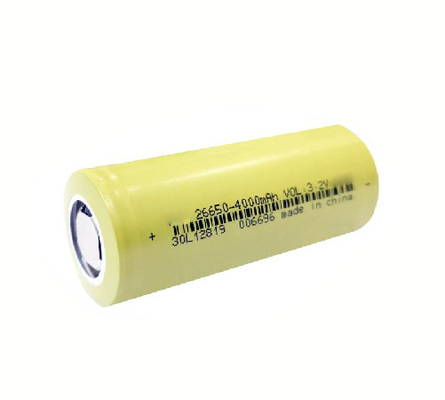

Cylindrical shape cell is the most cost-effective cell type since it is easy for mass production. And due to its production technology is quite mature today, the cell quality can be well controlled. HECO cylindrical cells are mainly in 26650 size. The capacities are from 3000mah to 4000mah with both high energy type and high power type. Highest energy type cell can be 4000mah at max. constant 2C discharge rate. Highest power rate cell is 3000mah at max. constant 10C discharge rate. In 2019, Heco developped low-temperature cells which can support charge under -30℃ (at 0.2C charge rate) and can support discharge under -50℃ (at 3C discharge rate) with 90% efficiency.
Quick Detail:
1. High capacity: 4000mah
2. High safety: lithium ion phosphate chemistry ensures its excellent safety performance
3. Long cycle life: 2000+ cycles @ 100% DOD
4. Discharge rate up to 2C and charge rate up to 1C;
5. suitable for small-middle sized solar power storage or light-duty electric vehicles
Technical parameters:
| Product Name | 3.2V 26700 Cell |
| Model | IFR26700-40E |
| Basic Specification | |
| Chemical | Lithium iron phosphate |
| Operation Voltage | 2.0~3.65V |
| Nominal Capacity | 4000mAh |
| Minimum Capacity | 3980mAh |
| Cell AC Impedance(1KHz) | <=22mΩ |
| Shipment Capacity | About 50% SOC |
| Cell Weight | 88±2g |
| Charge and discharge specification | |
| Standard Charge Current | 0.2C |
| Max. Constant Charge Current | 1C |
| Standard Discharge Current | 0.5C |
| Max. Continuous Discharge Current | 2C |
| Max. Long Pulse Discharge Current | 3C(30S) |
| Operating Temperature | |
| Standard Charging Temperature | 0~45℃ |
| Standard Discharging Temperature | -20~60℃ |
| Storage Temperature | -20~45℃ |
Full Cylindrical Cells List:
| Model | Nominal Voltage | Nominal Capacity | Resistance | Coninuous Discharge Current | Discharge Cut-off Voltage | Charge Current | Charge Cut-off Voltage | Dimensions (MAX) | Approx Weight | Cycle Life |
| V | mAh | mΩ | A | V | A | V |
mm (D*H) |
g | ||
| IFR21700-30E | 3.2 | 3000 | ||||||||
| IFR26700-34E | 3.2 | 3400 | ≤20 | ≤3C | 2.3 | ≤5C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR26700-40E | 3.2 | 4000 | ≤20 | ≤1C | 2.3 | ≤5C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR32700-60E | 3.2 | 3000 | ≤20 | ≤10C | 2.3 | ≤0.5C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR32800-75E | 3.2 | 3400 | ≤20 | ≤3C | 2.3 | ≤1C | 3.65 | 26*65 | 85 | ≥2000 |
Company advantages:
1. Advanced lifepo4 battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected and do more than required.
Tag: 4000mah Lifepo4 battery cell , 26700 4000mah LFP cell, 3.2V 4000mah cell
