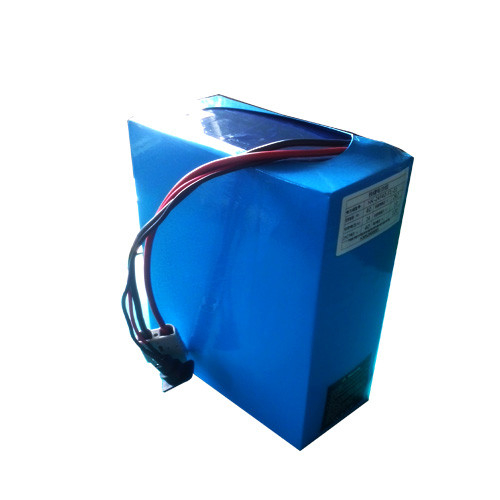

24V 40AH LiFePO4 Lithium Battery Module For Electric Vehicle

24V 40AH LiFePO4 Lithium Battery Module For Electric Vehicle
24V 40AH LiFePO4 Lithium Battery Module For Electric Vehicle

Large Image :  24V 40AH LiFePO4 Lithium Battery Module For Electric Vehicle

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: CE,RoHS ,UN38.3, ISO
Model Number: HK-BM-24F40-01
Payment & Shipping Terms:
Minimum Order Quantity: 10 Packs
Price: Negotiable
Packaging Details: 1 packs/carton, carton size: 570*240*230mm
Delivery Time: Sample: within 15 days;bulk order:25~60 days, based on the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal
Supply Ability: 1000 packs/ month

24V 40AH LiFePO4 Lithium Battery Module For Electric Vehicle

Description
Voltage: 24V Capacity: 40Ah
Dimension: Customized Design Name: LiFePO4 Battery Module, Lithium-Ion Battery Module, Customize Rechargeable Battery
Use: E-Car, E-Bikes, Electric Motorcycle,, Power Tools, Solar System, LED Light Feature: High Energy Density, Long Cycle Life, Environmental Friendly, High Power
High Light:

Lithium-Ion Battery Pack

,

LiFePO4 Battery Module



24V 40AH LiFePO4 Lithium Battery Module For Electric Vehicle



Quick Detail:



1. Soft-pack LiFePO4 cells inside
2. Compact in size and light in weight

3. BMS manages to each cell for high reliability
4. Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
5. Extremely safe: No explosion, no fire under collision, over charged or short circuit





Description:



Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.

LiFePO4 battery replacing Lead acid battery is an inevitable trend.

Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.





Basic knowledge:



Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.

Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.

All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:



Different Lithium Battery Material Comparision Table
NO. Parameters  Li-Co2 Li-NiCoMn Li-MnO2 LiFePO4
1 Energy density    (g/cm3) 2.8~3.0 2.0~2.3 2.2~2.4 1.0~1.4
2 Specific area         (m2/g) 0.4~0.6 0.2~0.4 0.4~0.8 12~20
3 Capacity density     (Ah/kg) 135~140 155~165 100~115 130~140
4 Voltage 3.7 3.6 3.6 3.2
5 Cycle life >300 >800 >500 >2000
6 Transition metal Poor Poor Rich Very rich
7 Material cost Very high High  Cheap Cheap
8 Environmental performance Contain Co Contain Co & Ni Non-toxic Non-toxic
9 Safety performance Bad Good Better Excellent
10 Application area Small battery Small battery          Small power battery Power battery Power battery Large capacity power supply





Specifications:



Item

Description

Nominal Voltage

24V

Rated Capacity

40Ah

Pack Dimension

Customized design

Internal Impedance

≤100mΩ

Charging Mode

CC/CV

Pack weight

About 12kg

Over Current Protection

Customized design

Cycle Life

About 1200 Cycles

Charge Temperature

0-45 ℃

Discharge Temperature

-20-55 ℃

The data on the table is only for reference





Company advantages:



1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.





Tag: LiFePO4 battery pack for e-scooter, LiFePO4 battery module for e-motorcycle, 24V 40ah lifepo4 batteries
