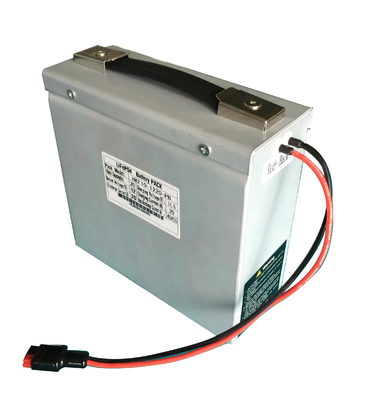

Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair

Customer Reviews
Good! HECO lithium batteries are of good quality and reasonable in price. I’d like to cooperate with such partner.

—— Jan Jacobsen

We are happy to get acquaintances with HECO. They are very professional!

—— Zhamal Ramazanov

HECO has a good supply chain of cells as well as other components. They always can supply me what i want.

—— Marco Dini

I'm Online Chat Now

Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair

Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair
Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair

Large Image :  Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: CE,RoHS ,UN38.3, ISO
Model Number: HC-LFP-12-20-M1
Payment & Shipping Terms:
Minimum Order Quantity: 100 units
Price: Negotiable
Packaging Details: 4 packs/carton, carton size: 570*240*230mm
Delivery Time: Sample: within 15 days;bulk order:25~60 days, based on the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal
Supply Ability: 10000 packs/ month

Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair

Description
Use: Electric Wheelchair, Small Solar Energy Storage Nominal Voltage: 12V
Nominal Capacity: 20Ah Weight: 3KG Including Case
Dimensions: Optional Feature: Compact Size, Light Weight, Long Cycle Life
High Light:

Rechargeable Lithium-Ion Battery Pack

,

Power Wheelchair Battery



New ! Compact Size 12V 20AH LiFePO4 Battery In Battery Case For Electric Wheelchair



Quick Detail:



1. Long cycle life: battery cell more than 1200 times (charge and discharge at 1C, 80% capacity retention after 1200 cycles);

2. High safety: no fire and explosion in overcharge test at the voltage up to 30V and in short-circuit test, nail test, heat shock up to 130℃ test;

3. Good charging and discharging performance;

4.  up to 10C;

5. All raw material of the batteries are environmental-friendly;

6. Wide working temperature range: from -10℃ to 60℃, extremely cold and hot weather will not affect its performance.





Description:



Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.

LiFePO4 battery replacing Lead acid battery is an inevitable trend.

Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.





Basic knowledge:



Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.

Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.

All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:















Different Lithium Battery Material Comparision Table

NO.

Parameters

Li-Co2

Li-NiCoMn

Li-MnO2

LiFePO4

1

Energy density    (g/cm3)

2.8~3.0

2.0~2.3

2.2~2.4

1.0~1.4

2

Specific area         (m2/g)

0.4~0.6

0.2~0.4

0.4~0.8

12~20

3

Capacity density     (Ah/kg)

135~140

155~165

100~115

130~140

4

Voltage

3.7

3.6

3.6

3.2

5

Cycle life

>300

>800

>500

>2000

6

Transition metal

Poor

Poor

Rich

Very rich

7

Material cost

Very high

High

Cheap

Cheap

8

Environmental performance

Contain Co

Contain Co & Ni

Non-toxic

Non-toxic

9

Safety performance

Bad

Good

Better

Excellent

10

Application area

Small battery

Small battery          Small power battery

Power battery

Power battery Large capacity power supply



From this table chart, we can see Lifepo4 battery has the most excellent comprehensivize performances.





Applications:



electric bike, electric wheelchair, electric scooter, electric motorcycle, golf cart, electric robot, vacuum cleaner, electric mower, wind/solar energy storage ...





Specifications:



Items

Characteristic parameters

Remark

Standard voltage

12V



Standard capacity

20Ah

0.2C5A discharge

Resistance

<100mΩ

AC Imp

Charge cut-off voltage

14.6V

0.5C5A discharge

Standard charge current

4A



Max charge current

10A



Standard discharge current

10A



Max discharge current

20A



Over-current protection current

30A



Dimension

Optional



Weight

Approx 3Kg



Working temperature range

charge

0℃~+45℃



discharge

-20℃~+55℃



Storage Temperature Range

-40℃~+40℃



Storage environment humidity



5%~90% RH







Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair 0

Compact Size 12V 20AH Power Wheelchair Batteries In Battery Case For Electric Wheelchair 1



Product advantages:



1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.





Company advantages:



1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.








Tag: electric wheelchair lithium battery, 12V 20Ah LiFePO4 battery, wheelchair lithium battery
