Product Details:
|
Product Name: | Solar Kit | Panel Output Voltage: | 18V |
---|---|---|---|
Battery: | LiFePO4 Battery 12V 40AH | Charge Controller: | 12V 10A |
Weight: | 24KG | ||
High Light: | 40Ah Lithium Ion Battery,Li-Polymer Battery Pack |
12V Solar Kit , Including 12V 40AH Lithium Battery, PV Panel & Charge Controller
Quick Detail:
With the emergence of wind & solar power and other new energy sources, the development of intelligent grid technology as well, large -scale energy storage station is becoming to meet peak power allocation. HECO is developing he environmental-protection lithium-ion energy storage battery with the lightest, fast charge and discharge, cycle file more than than 2,000 times to meet the future demand of energy storage stations and new energy vehicle charging stations. HECO strives to become an advanced enterprise in the energy storage battery industry field.
HECO 12V & 24V standard lithium ion battery with excellent safety,high energy density, cell voltage detection, which could be connected with BMS to monitor the matter as well, which is most suitable for energy storage battery.
Description:
12V Solar Kit , Including 12V 40AH Lithium Battery, PV Panel & Charge Controller
Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnZ battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.
Basic knowledge:
Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoYMnz, and Li-FePO4, etc.
Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.
All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:
Different Lithium Battery Material Comparision Table | |||||
NO. | Parameters | Li-Co2 | Li-NiCoMn | Li-MnO2 | LiFePO4 |
1 | Energy density (g/cm3) | 2.8~3.0 | 2.0~2.3 | 2.2~2.4 | 1.0~1.4 |
2 | Specific area (m2/g) | 0.4~0.6 | 0.2~0.4 | 0.4~0.8 | 12~20 |
3 | Capacity density (Ah/kg) | 135~140 | 155~165 | 100~115 | 130~140 |
4 | Voltage | 3.7 | 3.6 | 3.6 | 3.2 |
5 | Cycle life | >300 | >800 | >500 | >2000 |
6 | Transition metal | Poor | Poor | Rich | Very rich |
7 | Material cost | Very high | High | Cheap | Cheap |
8 | Environmental performance | Contain Co | Contain Co & Ni | Non-toxic | Non-toxic |
9 | Safety performance | Bad | Good | Better | Excellent |
10 | Application area | Small battery | Small battery Small power battery | Power battery | Power battery Large capacity power supply |
Specifications:
Item |
Inscription |
Nominal Voltage |
12V |
Rated Capacity |
40Ah |
Pack Dimension |
customized design |
Internal Impedance |
≤100mΩ |
Max.Charge Voltage |
14.6V |
Charge Current |
6A |
Discharge Cut-off Voltage |
9.2V |
Discharge Current |
2A |
Max.Discharge Current |
15A |
Charging Mode |
CC/CV |
Pack weight |
About 4.5 kg |
Over Current Protection |
Customized design |
Cycle Life |
≥2000 Cycles |
Charge Temperature |
0-65 ℃ |
Discharge Temperature |
-20-55 ℃ |
Certificates |
CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001 |
The data on the table is only for reference |
The battery is placed inside the battery housing, as well as the charge controller and LED drive. The battery we supply is LiFePO4 lithium battery, which is of long cycle life to be 2000 cycles and enjoys excellent performance under high tempreture to be 60℃. The battery dimensions can de changed according to different capacity and volt.
Put on the battery case cover to prevent from the rain, sun explosion, etc

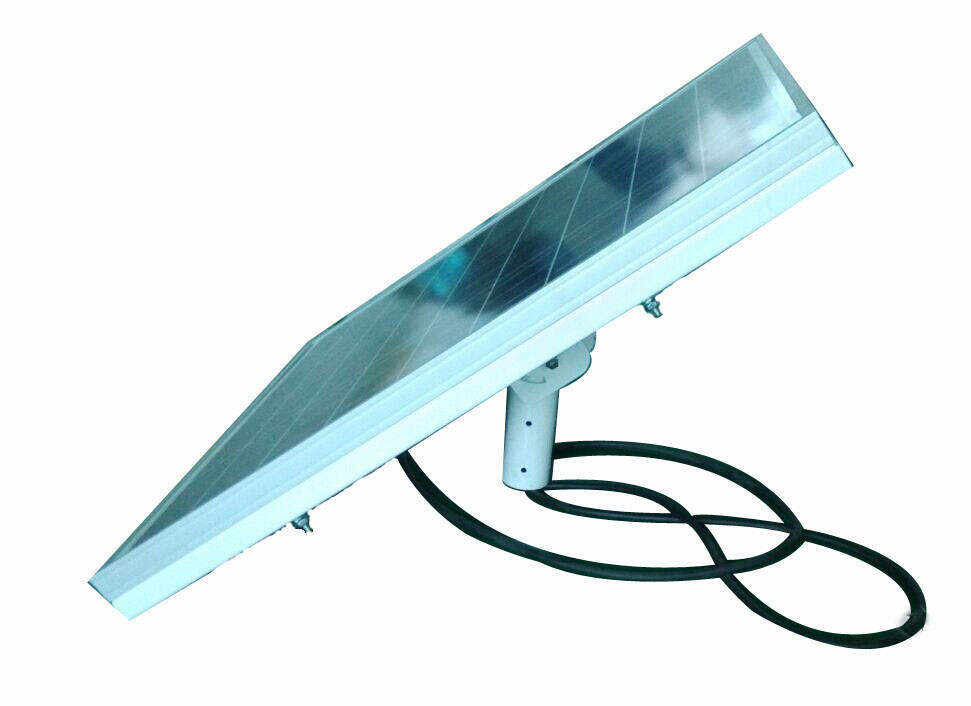

The Whole sytem looks like one PV panel, and is easy for installation.
Welcome to contact us if you have different needs!
Note: This system does not include the LED light. We recommend you prepare the LED light by yourself and we will give you solution to the rest parts. Thanks!
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: 12V 40AH lithium battery , 12V solar kit, 12v 40ah lifepo4 battery
