Product Details:
|
| Nominal Voltage: | 51.2V | Nominal Capacity: | 1000Ah |
|---|---|---|---|
| Energy: | 51.2KWh | Dimensions: | 601*510*1756mm (23.7*20.1*69.2 Inch) |
| Weight: | 538kg | Use: | Solar Energy Storage |
| Feature: | Large Capacity, Easy Installation, Maintenance Free |
Overview
With traditonal energy oil becoming more and more expensive, and the carton emission is turning to be a serious problem that all human beings have to face up with, the use of new energy solar, wind, etc is getting more and more popular. Solar PV industry is growing rapidly under the support of governments all over the world. But solar energy is not stable. It requires energy storage to make it more stable when using. Electrochemical energy storage is one of popular energy storage ways to store solar energy.
HECO is developing high eco lithium-ion energy storage batteries with lighter, longer cycle life to meet the demand of home use energy storage.
HECO 48V standard lithium ion batteries for home energy storage of excellent safety, long cycle life, compact size, elegant outlook, and quite intelligent is very reliable products for households.
Description:

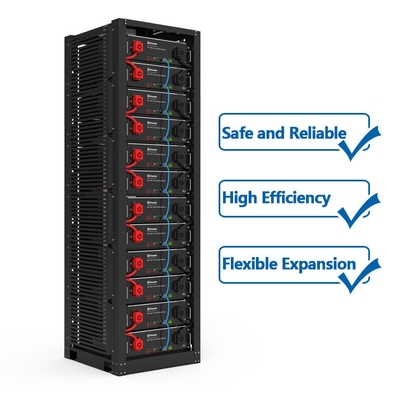

The PowerRack series is composed of 8pcs/10pcs/12pcs 51.2V 100AH modules in parallel or in series and smart BMS. The capacities are from 40kwh to 60kwh. There are Low Voltage(LV) version and High Voltage (LV) version.
Specifications:
| Item | Parameters | ||
| Model Number | PowerRack LV41 | PowerRack LV51 | PowerRack LV61 |
| Battery Type | LiFePO4 | ||
| Nominal Voltage | 51.2V | ||
| Nominal Capacity | 800Ah | 1000Ah | 1200Ah |
| Nominal Energy | 40.96kWh | 51.2kWh | 61.44kWh |
| Cycle Life | 3500 Cycles | ||
|
Size (W*D*H) |
601*510*1392mm (23.7*20.1*54.8 inch) | 601*510*1756mm (23.7*20.1*69.2 inch) |
601*510*2120mm (23.7*20.1*83.5 inch) |
| Weight | 433kg (954.6 lbs) | 538kg | 644kg (1419.8 lbs) |
| Protection Level | IP20 | ||
| Certification | CE/IEC 62619/IEC 62040/UN38.3 | ||
| Compatible Inverters | Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc | ||
| OEM/ODM | Yes (Accepted) | ||
| Warranty | 5 Years | ||
