Product Details:
|
| Voltage: | 48V | Capacity: | 100Ah |
|---|---|---|---|
| Dimension: | 555*210*928mm | Weight: | 69kg |
| Discharge Current: | 100A | Charge Current: | 100A |
| Protection Grade: | IP65 |
Description:
Powerwall series is composed of 2~4 modules of 48V 50AH in parallel. It is wall-mounted type which are popular in Europe and North America. The energy is from 5KWh to 10KWh. The cycle life can be 6000+cycles and we offer 10 years' warranty. The protection level can be up to IP65. For large energy models, please check Powercube series or Powertower series (High voltage).
Specifications:
| Item | Parameter | ||
| Battery Chemistry | LiFePO4 | ||
| Battery Module Qty | 2 Modules | 3 Modules | 4 Modules |
| Nominal Voltage | 48V | ||
| Nominal Capacity | 100Ah | 150Ah | 200Ah |
| Nominal Energy | 4.8kWh | 7.2kWh | 9.6kWh |
| Max Output Power | 4.8kW | 4.8kW | 4.8kW |
| Weight | 69kg (249 lbs) | 91kg (200 lbs) | 113kg (249 lbs) |
| Size | 928*555*210 mm (36.5*21.8*8.3 inch) | ||
| Working Voltage | 42~54℃ | ||
| Operating Temp. Range | -20~50℃ | ||
| Communication | CAN/RS485 | ||
| Cycle Life | 6000 Cycles | ||
| Color | White, Silver (Customized) | ||
| Scalabilitty | Up to 4 units in parallel | ||
| Protection Level | IP65 | ||
| The charge rate | 0.5C | ||
| The discharge rate | 0.5C | ||
| Certification | CE / UL / CEI 0-21 / CEC / TUV / UN38.3 / MSDS / ISO 9001 | ||
| Compatible Inverters | Goodwe / Victron / Imeon / Solis / Luxpower / Voltronic / Deye / SAJ Etc. | ||
| Alarms | Overcharge / Overdischarge / Overcurrent / Overtemperature / Short Circuit | ||
| Pros | Can be used in both off-grid and hybrid setups, compact design, modular expansion | ||
| Monitoring & Protection | Each module has BMS, breaker embedded in system | ||
| OEM/ODM | Warmly Welcomed | ||
| Warranty |
7 & 10 Years |
||

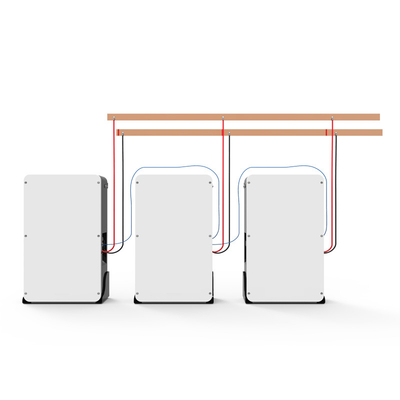

It can support up to 4pcs in parallel.
