Product Details:
|
| Nominal Voltage: | 12V | Nominal Capacity: | 8Ah |
|---|---|---|---|
| Battery Dimensions: | 148*178*21mm | Battery Weight: | About 0.8KG |
| Cycle Life: | 2000+ Times | Discharging Current: | 2A |
Overview
Instruments requires batteries to be compact in size and light in weight. If taking safety as a priority, then our HECO LiFePO4 batteries is definitely a best choice. LiFePO4 chemistry has the best safety performance and also light in weight.
| Different Lithium Battery Materials Comparision Table | |||||
| NO. | Parameters | Li-Co2 | Li-NiCoMn | Li-Mn2O4 | LiFePO4 |
| 1 | Energy density (g/cm3) | 2.8~3.0 | 2.0~2.3 | 2.2~2.4 | 1.0~1.4 |
| 2 | Specific area (m2/g) | 0.4~0.6 | 0.2~0.4 | 0.4~0.8 | 12~20 |
| 3 | Capacity density (Ah/kg) | 135~140 | 155~165 | 100~115 | 130~140 |
| 4 | Voltage | 3.7 | 3.6 | 3.6 | 3.2 |
| 5 | Cycle life | ＞300 | ＞800 | ＞500 | ＞2000 |
| 6 | Transition metal | Poor | Poor | Rich | Very rich |
| 7 | Material cost | Very high | High | Cheap | Cheap |
| 8 | Environmental performance | Contain Co | Contain Co & Ni | Non-toxic | Non-toxic |
| 9 | Safety performance | Bad | Good | Better | Excellent |
| 10 | Application area | Small battery | Small battery Small power battery | Power battery | Power battery Large capacity power supply |
Description:

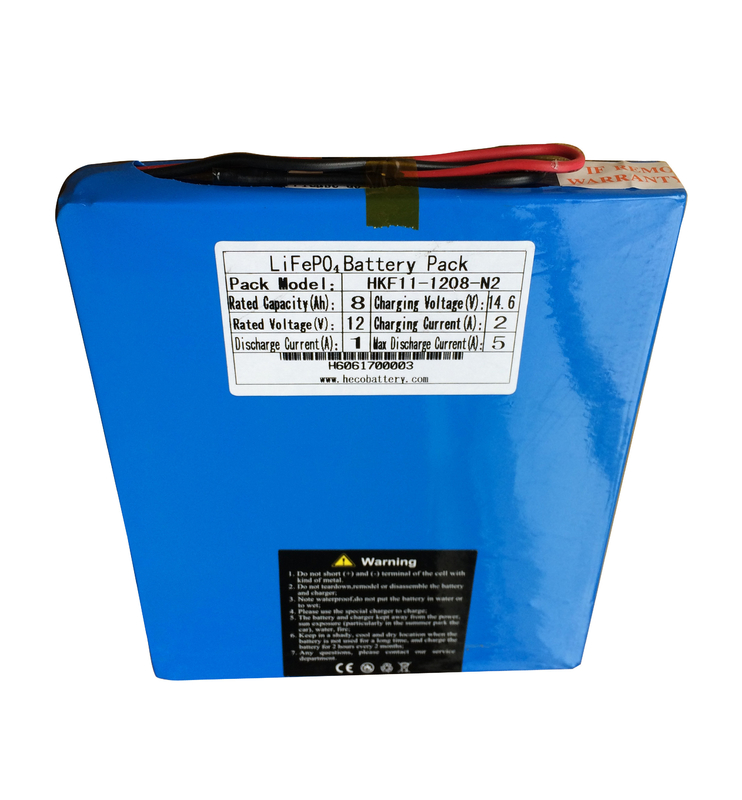

Ultra-thin Lithium Ion Phosphate Batteries 12V / 8Ah For Medical Instrument
This 12V 8AH lifepo4 battery pack is composed of 4 pcs 8ah lifepo4 polymer cells via 4S1P with a 10A smart BMS. The thickness is only 21mm.
Specifications:
|
Item |
Description |
|
Nominal Voltage |
12V |
|
Rated Capacity |
8Ah |
|
Pack Dimension |
148*178*21mm |
|
Internal Impedance |
≤60mΩ |
|
Max.Charge Voltage |
14.6V |
|
Standard Charge Current |
2A |
|
Discharge Cut-off Voltage |
9.2V |
|
Standard Discharge Current |
4A |
|
Max.Discharge Current |
8A |
|
Charging Mode |
CC/CV |
|
Pack weight |
About 0.8kg |
|
Over Current Protection |
12A |
|
Cycle Life |
≥ 2000 Cycles |
|
Charge Temperature |
0-45 ℃ |
|
Discharge Temperature |
-20-60 ℃ |
|
Certificates |
MSDS, UN38.3, CE, IEC62133 |
|
The data on the table is only for reference |
|
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced lifepo4 battery technology to produce high quality lifepo4 cells in different battery shapes including pouch, cylindrical and prismatic and focus on small-middle lithium battery packs for more than 10 years.
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one-stop solutions including battery pack structure, BMS, charger and overall applications.
4. Intimate and in time reacting service system. HECO requires 24h response and 72h solution providing. We always try to offer more than expected and do more than required.
Tag: 12v 8ah lifepo4 batteries, medical lithium battery, 12v medical lithium battery
