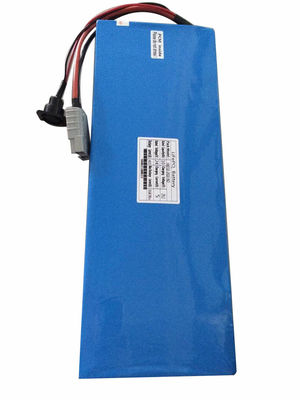

24V 10AH Lifepo4 Power Battery for Electric Skateboard With High Discharge Rate

24V 10AH Lifepo4 Power Battery for Electric Skateboard With High Discharge Rate
24V 10AH Lifepo4 Power Battery for Electric Skateboard With High Discharge Rate

Large Image :  24V 10AH Lifepo4 Power Battery for Electric Skateboard With High Discharge Rate

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: CE,RoHS ,UN38.3, ISO
Model Number: HC-PS-24F10-B
Payment & Shipping Terms:
Minimum Order Quantity: 50 Packs
Price: Negotiable
Packaging Details: 4 packs/carton, carton size: 570*240*230mm
Delivery Time: Sample: within 15 days;bulk order:25~60 days, based on the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal
Supply Ability: 5000 packs/ month

24V 10AH Lifepo4 Power Battery for Electric Skateboard With High Discharge Rate

Description
Voltage: 24V Capacity: 10Ah
Dimension: 395*150*28mm Name: LiFePO4 Battery Pack, Lithium-Ion Battery Pack, Customize Rechargeable Battery
Use: EV, E-Car, E-Bikes, E-Scooter, Electric Motorcycle, Electric Wheelchair Feature: High Energy Density, Long Cycle Life, Environmental Friendly, High Power
High Light:

LiFePO4 Rechargeable Battery

,

Power Lithium Ion Battery



24V 10AH Lifepo4 Power Battery for Electric Skateboard With High Discharge Rate



Quick Detail:



1. Soft-pack LiFePO4 cells inside

2. Compact in size and light in weight

3. BMS manages to each cell for high reliability

4. Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH

5. Extremely safe: No explosion, no fire under collision, over charged or short circuit





Description:





Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.

LiFePO4 battery replacing Lead acid battery is an inevitable trend.

Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.





How to use:



Connect several such module batteries in series to reach the voltage you want. For example, if you want a 36V 50Ah battery pack, just cascade 6 pcs 6.4V 50ah module batteries is OK.





Basic knowledge:



Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.

Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.

All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:



Different Lithium Battery Material Comparision Table
NO. Parameters  Li-Co2 Li-NiCoMn Li-MnO2 LiFePO4
1 Energy density    (g/cm3) 2.8~3.0 2.0~2.3 2.2~2.4 1.0~1.4
2 Specific area         (m2/g) 0.4~0.6 0.2~0.4 0.4~0.8 12~20
3 Capacity density     (Ah/kg) 135~140 155~165 100~115 130~140
4 Voltage 3.7 3.6 3.6 3.2
5 Cycle life >300 >800 >500 >2000
6 Transition metal Poor Poor Rich Very rich
7 Material cost Very high High  Cheap Cheap
8 Environmental performance Contain Co Contain Co & Ni Non-toxic Non-toxic
9 Safety performance Bad Good Better Excellent
10 Application area Small battery Small battery          Small power battery Power battery Power battery Large capacity power supply





Specifications:



Item

Description

Nominal Voltage

24V

Rated Capacity

10Ah

Internal Impedance

≤100mΩ

Charging Mode

CC/CV

Pack weight

About 2kg

Pack Dimensions

400*150*28mm

Over Current Protection

Customized design

Cycle Life

At least 1200 Cycles

Charge Temperature

0-45 ℃

Discharge Temperature

-20-55 ℃

The data on the table is only for reference

24V 10AH Lifepo4 Power Battery for Electric Skateboard With High Discharge Rate 0



Product advantages:



1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.





Company advantages:



1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.





Tag: electric skateboard lithium battery, 24V electric skateboard lithium battery, 24v 10ah lifepo4 batteries
