Product Details:
|
Voltage: | 36V | Capacity: | 10Ah |
---|---|---|---|
Dimension: | 168*100*160mm | Name: | LiFePO4 Battery Pack, Lithium-Ion Battery Pack, Customize Rechargeable Battery |
Use: | EV, E-Car, E-Bikes, E-Scooter, Electric Motorcycle, Electric Wheelchair | Feature: | High Energy Density, Long Cycle Life, Environmental Friendly, High Power |
High Light: | LiFePO4 Rechargeable Battery,Power Battery Pack |

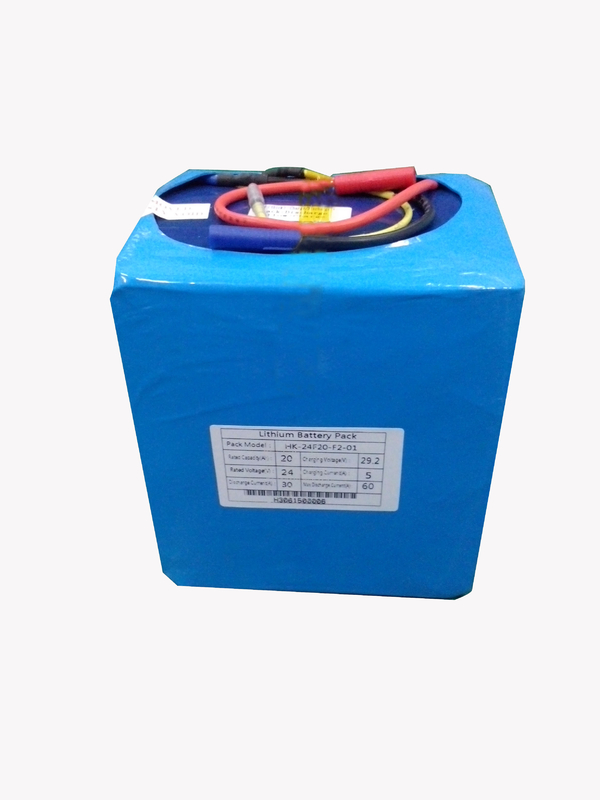

24V 20Ah LiFePO4 Power Battery Pack / Module For Electric Scooter
Quick Detail:
1. Soft-pack LiFePO4 cells inside
2. Compact in size and light in weight
3. BMS manages to each cell for high reliability
4. Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
5. Extremely safe: No explosion, no fire under collision, over charged or short circuit
Why to choose us become your supplier?
1.Professional lithium-ion battery pack for over 5 years.
2.Strong R&d team to support.
3.Only make high quality battery
4.BMS solution come from NSK and Recoh.
5.Offer OEM service for customer small order.
6.Quickly action & respond.
7.Best sale service and good price.
8:All of us,working hard.
Description:
Lithium polymer battery pack/module of 24V 20ah, electric scooter battery pack
Li-FePO4 battery modules and BMS solution:
Our company is a manufacturer of Li-FePO4 cells
Li-FePO4 battery modules and BMS solution:
Our company was a manufacturer of Li-FePO4 cells, we make and developing Battery Management Systems(BMS) battery solution, our battery modules have:
12v 8Ah, 12v 10Ah, 12v 20Ah, 12v 40Ah 12v 50Ah
We use this standard modules to build 24V, 36V, 48V, 72V...etc, and support different energy BMS solutions to support our customers
Basic knowledge:
Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.
Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.
All these lithium ion batteries have their own advantages.
Different Lithium Battery Material Comparision Table | |||||
NO. | Parameters | Li-Co2 | Li-NiCoMn | Li-MnO2 | LiFePO4 |
1 | Energy density (g/cm3) | 2.8~3.0 | 2.0~2.3 | 2.2~2.4 | 1.0~1.4 |
2 | Specific area (m2/g) | 0.4~0.6 | 0.2~0.4 | 0.4~0.8 | 12~20 |
3 | Capacity density (Ah/kg) | 135~140 | 155~165 | 100~115 | 130~140 |
4 | Voltage | 3.7 | 3.6 | 3.6 | 3.2 |
5 | Cycle life | >300 | >800 | >500 | >2000 |
6 | Transition metal | Poor | Poor | Rich | Very rich |
7 | Material cost | Very high | High | Cheap | Cheap |
8 | Environmental performance | Contain Co | Contain Co & Ni | Non-toxic | Non-toxic |
9 | Safety performance | Bad | Good | Better | Excellent |
10 | Application area | Small battery | Small battery Small power battery | Power battery | Power battery Large capacity power supply |
From this chart, We can see Li-fepo4 battery has the most excellent overall performance.
Specifications:
Item |
Description |
Nominal Voltage |
36V |
Rated Capacity |
10Ah |
Pack Dimension |
168*100*160mm |
Internal Impedance |
≤100mΩ |
Charging Mode |
CC/CV |
Pack weight |
About 5kg |
Over Current Protection |
193*145*97mm |
Cycle Life |
About 1200 Cycles |
Charge Temperature |
0-45 ℃ |
Discharge Temperature |
-20-55 ℃ |
The data on the table is only for reference |
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: Lithium polymer battery pack, LiFePO4 battery pack, electric scooter battery pack
