Product Details:
|
Voltage: | 24V | Capacity: | 20Ah |
---|---|---|---|
Dimension: | 150*53*288mm | Name: | LiFePO4 Battery Pack, Lithium-Ion Battery Pack, Customize Rechargeable Battery |
Use: | E-skateboard, Electric Wheelchair | Feature: | High Energy Density, Long Cycle Life, Environmental Friendly, High Power |
High Light: | LiFePO4 Rechargeable Battery,Power Battery Pack |
Quick Detail:
1. Long cycle life: battery cell more than 1200 times (charge and discharge at 1C, 80% capacity retention after 1200 cycles);
2. High safety: no fire and explosion in overcharge test at the voltage up to 30V and in short-circuit test, nail test, heat shock up to 130℃ test;
3. Good charging and discharging performance;
4. High discharge rate up to 10C;
5. All raw material of the batteries are environmental-friendly;
6. Wide working temperature range: from -10℃ to 60℃, extremely cold and hot weather will not affect its performance.
Description:

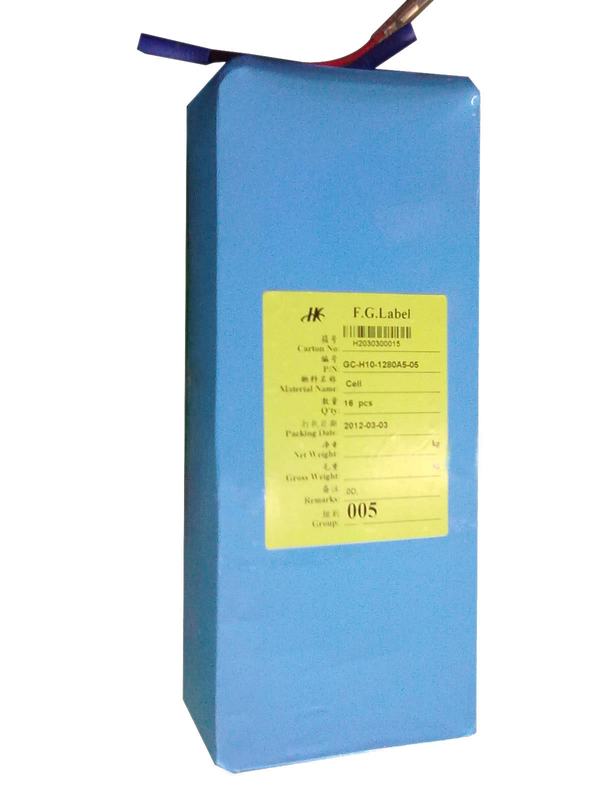

24V 20Ah Lithium Ion LiFePO4 Power Battery For Electric Wheelchair / Skateboard
Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.
Basic knowledge:
Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.
Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.
All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:
Different Lithium Battery Material Comparision Table | |||||
NO. | Parameters | Li-Co2 | Li-NiCoMn | Li-MnO2 | LiFePO4 |
1 | Energy density (g/cm3) | 2.8~3.0 | 2.0~2.3 | 2.2~2.4 | 1.0~1.4 |
2 | Specific area (m2/g) | 0.4~0.6 | 0.2~0.4 | 0.4~0.8 | 12~20 |
3 | Capacity density (Ah/kg) | 135~140 | 155~165 | 100~115 | 130~140 |
4 | Voltage | 3.7 | 3.6 | 3.6 | 3.2 |
5 | Cycle life | >300 | >800 | >500 | >2000 |
6 | Transition metal | Poor | Poor | Rich | Very rich |
7 | Material cost | Very high | High | Cheap | Cheap |
8 | Environmental performance | Contain Co | Contain Co & Ni | Non-toxic | Non-toxic |
9 | Safety performance | Bad | Good | Better | Excellent |
10 | Application area | Small battery | Small battery Small power battery | Power battery | Power battery Large capacity power supply |
From this chart, We can see Li-fepo4 battery has the most excellent overall performance.
Applications:
electric bike, electric wheelchair, electric scooter, electric motorcycle, golf cart, electric robot, vacuum cleaner, electric mower, wind/solar energy storage ...
Specifications:
Items |
Characteristic parameters |
Remark |
|
Standard voltage |
24V |
|
|
Standard capacity |
20Ah |
0.2C5A discharge |
|
Resistance |
<100mΩ |
AC Imp |
|
Charge cut-off voltage |
29.2V |
0.5C5A discharge to Over discharge protection |
|
Rated charge current |
3A |
|
|
Rated discharge current |
8A |
|
|
Peak discharge current |
16A |
|
|
Over-current protection current |
24A |
|
|
Connection mode |
2P -8S |
|
|
Dimension |
150*53*288mm |
|
|
Weight |
About 3.2Kg |
|
|
Working temperature range |
charge |
0℃~+45℃ |
|
discharge |
-20℃~+55℃ |
|
|
Storage Temperature Range |
-40℃~+40℃ |
|
|
Storage environment humidity
|
5%~90% RH |
|
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: electric wheelchair lihitum battery, skateboard lithium battery, 24V lithium ion battery, 24V lifepo4 battery
