40Ah Lithium Battery Pack For Solar Wind Energy Storage System

Customer Reviews
Good! HECO lithium batteries are of good quality and reasonable in price. I’d like to cooperate with such partner.

—— Jan Jacobsen

We are happy to get acquaintances with HECO. They are very professional!

—— Zhamal Ramazanov

HECO has a good supply chain of cells as well as other components. They always can supply me what i want.

—— Marco Dini

I'm Online Chat Now

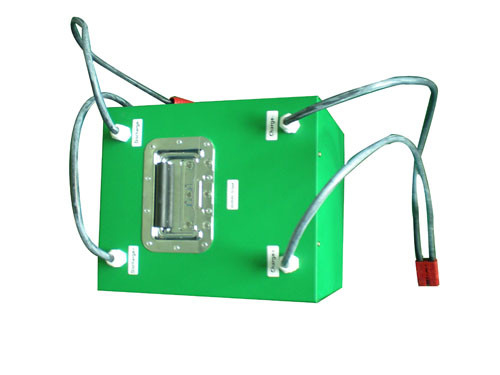

40Ah Lithium Battery Pack For Solar Wind Energy Storage System

40Ah Lithium Battery Pack For Solar Wind Energy Storage System
40Ah Lithium Battery Pack For Solar Wind Energy Storage System 40Ah Lithium Battery Pack For Solar Wind Energy Storage System

Large Image :  40Ah Lithium Battery Pack For Solar Wind Energy Storage System

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
Model Number: HK-PS-48F40-02
Payment & Shipping Terms:
Minimum Order Quantity: 10 Packs
Price: Negotiable
Packaging Details: 1 packs/carton, carton size: 570*480*230mm
Delivery Time: Sample: within 15 days; bulk order:25~60 days, based on the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 200 packs/ month

40Ah Lithium Battery Pack For Solar Wind Energy Storage System

Description
Voltage: 48V Dimension: 380*380*250mm
Name: LiFePO4 Battery Pack, Lithium-Ion Battery Pack, Customize Rechargeable Battery Capacity: 40Ah
Use: E-Car, Electric Mower , Power Tools, Solar System, LED Light Feature: High Energy Density, Long Cycle Life, Environmental Friendly, High Power
High Light:

40Ah LiFePO4 Battery

,

Li-Polymer Battery Pack



40Ah Lithium Battery Pack For Solar Wind Energy Storage System



Quick Detail:



With the emergence of wind & solar power and other new energy sources, the development of intelligent grid technology as well, large -scale energy storage station is becoming to meet peak power allocation. HECO is developing he environmental-protection  lithium-ion energy storage battery with the lightest, fast charge and discharge, cycle file more than than 10,000 times to meet the future demand of energy storage stations and new energy vehicle charging stations. HECO strives to become an advanced enterprise in the energy storage battery industry field.

HECO 12V &24V standard lithium ion battery with excellent safety,high energy density, cell voltage detection, which could be connected with BMS to monitor the matter as well, which is most suitable for energy storage battery.





Description:



48V 40Ah LiFePO4 Battery Pack for solar energy system



Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.

LiFePO4 battery replacing Lead acid battery is an inevitable trend.

Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.





Specifications:



Item

Description

Nominal Voltage

48V

Rated Capacity

40Ah

Pack Dimension

380*380*250mm

Internal Impedance

≤80mΩ

Max.Charge Voltage

58.4V

Charge Current

8A~20A

Min.Discharge Voltage

36.8V

Rated Discharge Current

40A

Max.Discharge Current

120A

Charging Mode

CC/CV

Pack weight

About 25kg

Over Current Protection

Customized design

Cycle Life

About 1200 Cycles

Charge Temperature

0-45 ℃

Discharge Temperature

-20-55 ℃

Certificates

CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001

The data on the table is only for reference





Product advantages:



1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.





Company advantages:



1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.





Tag: LiFePO4 Battery Pack for solar energy system, Solar energy storage battery, Rechargeable Lithium Ion Battery for Solar Energy Storage
