Product Details:
|
| Voltage: | 48V | Capacity: | 50Ah |
|---|---|---|---|
| Dimension: | 574*228*600mmmm | Weight: | 44kg |
| Use: | Solar Energy System, Home Energy Storage | Warranty: | 10 Years |
| High Light: | LiFePO4 Solar Battery,Solar Power System Battery |
||
Quick details:
1. Easy to install: plug and play
2. High safety: LiFePO4 chemistry and smart BMS to protect the whole battery
3. Wide compatibility: matching with most leading inverters of different brands
4. Long warranty period of 10 years
5. Full certificates approved by UN38.3, CE, TUV, IEC, etc
Description:

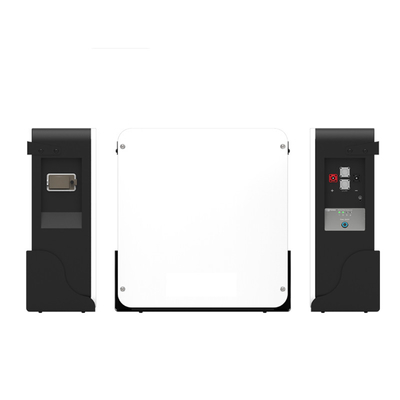

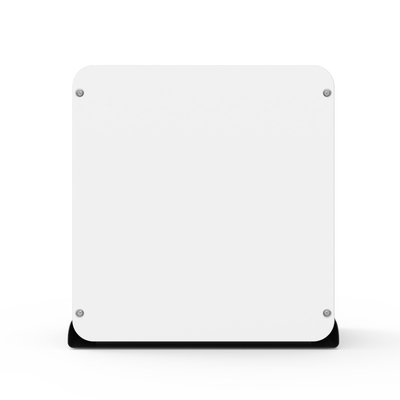

Powerwall mini series is smallar in height than Powerwall series. The height is 600mm. It has two capacity versions, 50Ah and 100Ah, that is 2.4KWh and 4.8KWh.
Specifications:
| Model | Powerwall mini | |
| Battery Chemistry | LiFePO4 | |
| Battery Module | M4850 | |
| Nominal Voltage | 48V | |
| Module Qty | 1 module | 2 modules |
| Nominal Capacity | 50Ah | 100Ah |
| Nominal Energy | 2.4kWh | 4.8kWh |
| Max Output Power | 2.4kW | 4.8kW |
| Weight | 44kg | 65kg |
| Size | 574*228*600 mm | |
| Working Voltage | 42~54℃ | |
| Operating Temp. Range | -20~50℃ | |
| Communication | CAN/RS485 | |
| Certification | CE/CEI 0-21/UN38.3/MSDS/ISO 9001 | |
| Cycles Life | 6000 Cycles | |
| Scalabilitty | Up to 4 units in parallel | |
| The charge rate | 0.5C | |
| The discharge rate | 0.5C | |
| Protection Level | IP65 | |
| Compatible Inverters | Goodwe/Victron/Imeon/Solis/Luxpower/Voltronic/Deye/SAJ Etc. | |
| Color | White, Silver, Yellow (Customized) | |
| Alarms | Overcharge / Overdischarge / Overcurrent / Overtemperature / Short Circuit | |
| Pros | Can be used in both off-grid and hybrid setups, compact design, modular expansion | |
| Monitoring & Protection | Each module has BMS, breaker embedded in system | |
| OEM/ODM | Warmly Welcomed | |
| Warranty | 10 Years | |
