Product Details:
|
| Nominal Volt: | 48V | Nominal Capacity: | 300AH |
|---|---|---|---|
| Chemistry: | LiFePO4 | Rate Discharge Current: | 150A |
| Rate Charing Current: | 150A | Dimensions: | 600*520*895mm |
| Weight: | 158kg | Application: | Backup Power Supply, Solar Energy Storage System |
Quick Detail:
1. Modular design is suitable for shipping, installation and extend
2. Long warranty period of 10 years
3. Cycle life is more than 6000+ times and calendar life is more than 20 years
4. IP65 protection level
5. Certified by UN38.3, CE
Description:

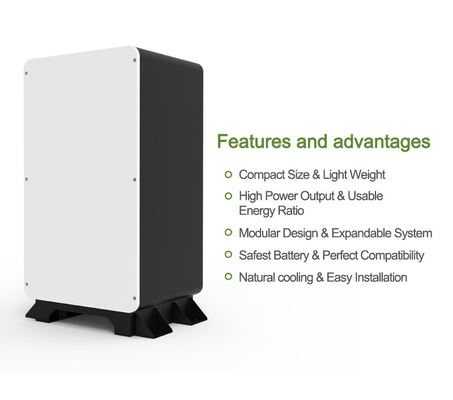

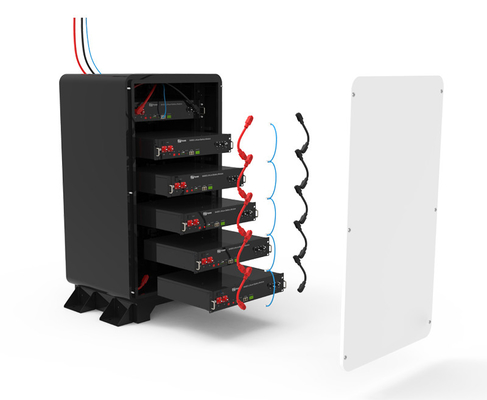

PowerCube M4850 series is composed of 5~9 modules of 48V 50AH in parallel. They are designed to be placed on the ground. The capacity range is from 12Kwh to 21.6KWh. There are 2 dimensions: 12Kwh and 14.4kwh are dimensioned at 895*600*520 mm and 16.8KWh, 19.2kwh, 21.6kwh are at 1585*600*520 mm. The proetection level can be up to IP65.
Specifications:
| Item | Parameters | |||||||
| Model | PowerCube M4850 | |||||||
| Battery Type | LiFePO4 | |||||||
| Module Qty |
5 Modules |
6 Modules |
7 Modules |
8 Modules |
9 Modules |
10 Modules |
11 Modules |
12 Modules |
| Nominal Voltage | 48V | |||||||
| Nominal Capacity | 250Ah | 300Ah | 350Ah | 400Ah | 450Ah | 500Ah | 550Ah | 600Ah |
| Nominal Energy | 12kWh | 14.4kWh | 16.8kWh | 19.2kWh | 21.6kWh | 24KWh | 26.4KWh | 28.8KWh |
| Working Voltage | 42~54V | |||||||
| Operating Temp. Range | -20~50 ℃ | |||||||
| Cycle Life | 6000 Cycles | |||||||
| Certification | CE/TÜV/MSDS/ISO 9001 | |||||||
| Communication | CAN/RS485 | |||||||
| Color | White, Yellow (Customized) | |||||||
| Size |
895*600*520 mm (35.2*23.6*20.5 inch) |
1585*600*520 mm (62.4*23.6*20.5 inch) |
||||||
| Weight |
158kg (348 lbs) |
180kg (397 lbs) |
226kg (498 lbs) |
248kg (547 lbs) |
270kg (595 lbs) |
292kg | 314kg | 336kg |
| The Charge Rate | 0.5C | |||||||
| The Discharge Rate | 0.5C | |||||||
| Protection Level | IP65 | |||||||
| Compatible Inverters | Goodwe/Victron/Imeon/Solis/Luxpower/Voltronic/Deye/SAJ Etc. | |||||||
| Alarms | Overcharge / Overdischarge / Overcurrent / Overtemperature / Short Circuit | |||||||
| Pros | Can be used in both off-grid and hybrid setups, compact design, modular expansion | |||||||
| Monitoring & Protection | Each module has BMS, breaker embedded in system | |||||||
| OEM/ODM | Yes | |||||||
| Warranty | 10 Years | |||||||
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag:15KWh solar energy storage lithium battery, 48V 300ah solar lithium ion battery bank
