Product Details:
|
| Voltage: | 3.2V | Dimensions: | 32700 |
|---|---|---|---|
| Capacity: | 6000mah | Resistance: | 20mΩ |
| Weight: | *g | Discharge Rate: | 3C (5℃ < T ≤ 45℃) |
| Charge Rate: | 1C (15℃ < T ≤ 45℃) |
Overview:
Cylindrical shape cell is the most cost-effective cell type since it is easy for mass production. And due to its production technology is quite mature today, the cell quality can be well controlled. HECO brought in cylindrical cells in 26650, 26800, 32700, 21700 sizes. The capacities are from 3000mah to 6000mah. Some are high energy type and some are high power type.
Quick Detail:

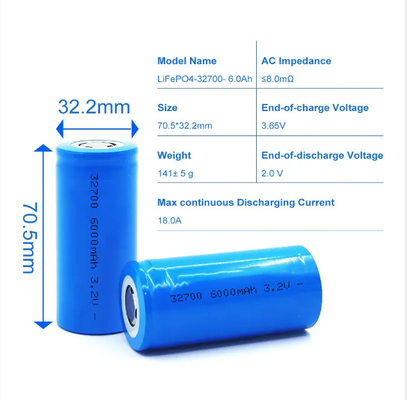

1.32mm diameter and 70mm in height
2. Middle power rate: 3C discharge rate can meet the requirement of most light-duty electric vehicles and solar energy storage
3. Long cycle life: 2000+ cycles @ 80% DOD
4. High quality assurance: from China top cell manufacturer with 3 years' warranty
Technical parameters:
| Model | IFR32700-60P |
| Chemical | LFP |
| Operation Voltage | 2.3~3.65V |
| Nominal Capacity | 6000mAh |
| Minimum Capacity | 5980mAh |
| Cell AC Impedance(1KHz) | <=20mΩ |
| Cell Weight | 69±2g |
| Standard Charge Current | 0.2C |
| Max. Constant Charge Current | 1C |
| Standard Discharge Current | 1C |
| Max. Continuous Discharge Current | 3C |
| Max. Long Pulse Discharge Current | 5C(10S) |
| Standard Charging Temperature | 0~45℃ |
| Standard Discharging Temperature | -20~60℃ |
| Storage Temperature | -20~45℃ |
Full Cylindrical Cells List:
| Model | Nominal Voltage | Nominal Capacity | Resistance | Coninuous Discharge Current | Discharge Cut-off Voltage | Charge Current | Charge Cut-off Voltage | Dimensions (MAX) | Approx Weight | Cycle Life |
| V | mAh | mΩ | A | V | A | V |
mm (D*H) |
g | ||
| IFR26650-33P | 3.2 | 3300 | ≤20 | ≤3C | 2.3 | ≤1C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR26650-34P | 3.2 | 3400 | ≤20 | ≤3C | 2.3 | ≤1C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR26650-40P | 3.2 | 4000 | ≤20 | ≤3C | 2.3 | ≤1C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR26650-30HP | 3.2 | 3000 | ≤20 | ≤10C | 2.3 | ≤2C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR26650-34LT | 3.2 | 3400 | ≤20 | ≤3C | 2.3 | ≤1C | 3.65 | 26*65 | 85 | ≥2000 |
| IFR21700-30P | 3.2 | 3000 | ≤20 | ≤3C | 2.3 | ≤1C | 3.65 | 21*70 | ≥2000 | |
| IFR26700-40P | 3.2 | 4000 | ≤20 | ≤3C | 2.3 | ≤1C | 3.65 | 26*70 | ≥2000 | |
| IFR26800-50P | 3.2 | 5000 | ≤16 | ≤3C | 2.3 | ≤1C | 3.65 |
(26.6±0.2) * (80.0±0.5) |
104±3 | ≥2000 |
| IFR32700-60P | 3.2 | 6000 | ≤8 | ≤6C | 2.3 | ≤1C | 3.65 |
(32.2±0.3) * (70.5±0.3) |
140±5 | ≥2000 |
Company advantages:
1. HECO produces LFP Pouch cell himself and also bring in high-quality cylindrical cells & prismatic cells which can fully meet customers' custom-made requirements.
2. Excellent procedure quality tracking control system ensure HECO batteries of excellent performance and good consistency.
3. Offer one-stop lithium battery pack solutions. HECO R&D team could offer our clients one-stop solutions including lithium cell selection, BMS selection, output connector selection, lithium battery pack structure design, lithium battery pack assembly and charger supply.
4. Offer in time and professional reacting service system. Inquiry is required to reply within 24 hours.
Tag: 32700 LiFePO4 cell , 32700 3.2V cell, 32700 LFP cell
