3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type Lithium Battery

Customer Reviews
Good! HECO lithium batteries are of good quality and reasonable in price. I’d like to cooperate with such partner.

—— Jan Jacobsen

We are happy to get acquaintances with HECO. They are very professional!

—— Zhamal Ramazanov

HECO has a good supply chain of cells as well as other components. They always can supply me what i want.

—— Marco Dini

I'm Online Chat Now

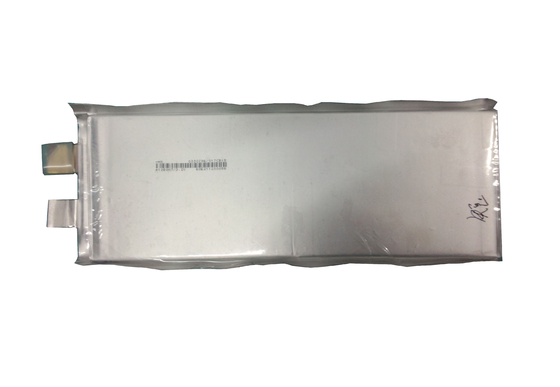

3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type Lithium Battery

3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type  Lithium Battery
3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type  Lithium Battery

Large Image :  3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type Lithium Battery

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: CE,RoHS ,UN38.3, ISO
Model Number: HC-1260J0
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 25 pcs/carton, carton size: 570*240*230mm
Delivery Time: Sample: within 3 days, bulk order:15~40 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 2000 pcs/ day

3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type Lithium Battery

Description
Voltage: 3.2V Capacity: 10ah
Dimension: 12*60*190mm Name: LiFePO4 Battery Cell, Lithium-Ion Battery Cell, Customize Rechargeable Battery Cell
Use: LiFePO4 Battery, Lithium-Ion Battery Feature: High Energy Density, Long Cycle Life, Environmental Friendly, High Power
High Light:

8Ah Lithium-Ion Battery

,

Rechargeable Battery Cell



High Quality 10Ah LiFePO4 Battery Cell , 3.2V Pouch Type Lithium Battery 1260190



Quick Detail:



1. Long cycle life: More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);

2. High safety: No fire and explosion in overcharge test;

3. Good charging and discharging performance;

4. All raw material of the batteries are environmental-friendly;

5. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.

6.Produced with automatic equipments





Description:



Large Capacity 10Ah LiFePO4 Battery Cell ,  Lithium Polymer Battery

If you have a need of large quantity of battery cells, we can provide customized design.



10Ah LiFePO4 Battery Cell Parameters

Model
Nominal Volt Nominal Capacity Std Dis Current Fast Dis Current Max Dis Current Dis Cut-off Volt Std Charge Current Fast Charge Current Charge Cut-off Volt Dimension (MAX) About Weight
V Ah A A A V A A V mm g
1260190 3.2 10 2 20 30 2.3 2 10 3.65 12*60*190 250



3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type  Lithium Battery 0



1. Charge-discharge Curves for LiFePO4 battery

3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type  Lithium Battery 1





2. Ratio-discharge for LiFePO4 battery

3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type  Lithium Battery 2





3. Discharge Curves at 0.2C at different temperature for LiFePO4 battery

3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type  Lithium Battery 3





4. Cycle life Characterristics for LiFePO4 battery

3.2V 20Ah LiFePO4 Battery Cell , 3.2V Pouch Type  Lithium Battery 4













Product advantages:



1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.





Company advantages:



1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.





Tag: 10Ah Lifepo4 battery cell, 10ah Lithium ion phosphate battery cell, 10Ah LFP battery
