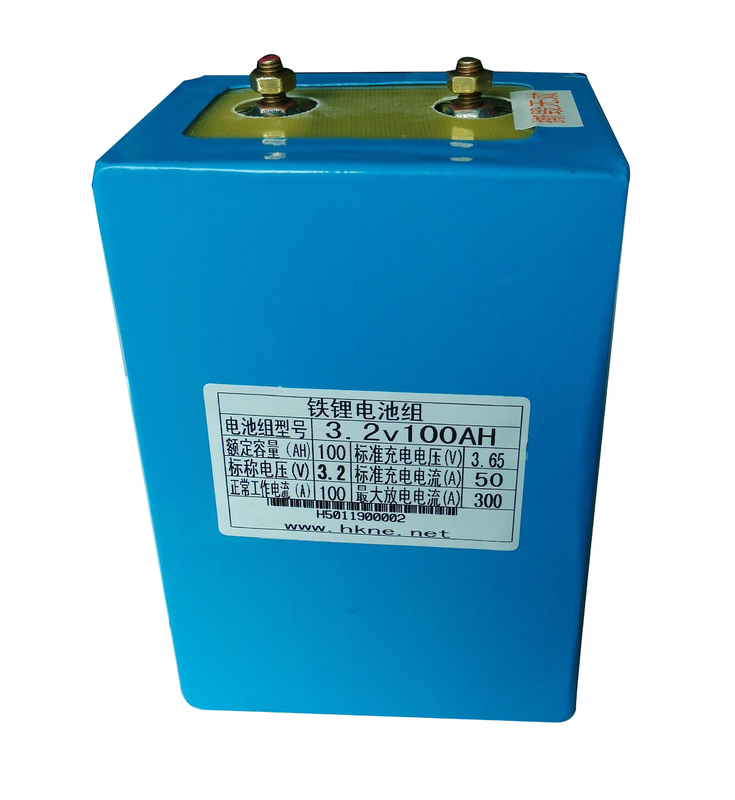

100Ah 3.2V Prismatic Cell Aluminum Shell LiFePO4 Chemistry 4000+ Cycle Life

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: CE, UN38.3
Model Number: IFP26122341
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: Negotiable
Packaging Details: 10 pcs/carton, carton size: 570*240*230mm
Delivery Time: Sample: within 15 days;bulk order:25~60 days, based on the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal
Supply Ability: 20000 packs/ month
Contact Now

Detail Information

Nominal Voltage: 3.2V Nominal Capacity: 100Ah
Battery Dimensions: 26*122*341 Battery Weight: 2.5KG
Feature: Easy For Battery Assembly And Maintenance PCB Intergrated: NO
High Light:

LiFePO4 Battery Pack


LiFePO4 Battery Module

Product Description

From HECO point of view, prismatic cells of bolt connecting type is very suitable to make energy storage battery packs. But most prismatic cells in market are designed to make power battery packs which need laser welding. So HECO developped prismatic cells of bolt connecting type specially for energy storage. 3 models are available. 25AH, 100AH and 150AH can be easily connected in series and in parallel to get the popular needed battery pack sizes such as 12V 100AH, 12V 200AH, 48V 100AH, 48V 150AH and 48V 200AH, etc.

1- Customized for the size of the rack installation, thinner and longer, cell energy density of 160Wh /kg, 20% higher than traditional cells, system energy density increased by more than 30%
2- Better heat dissipation performance: 70% higher heat dissipation efficiency compared with peers
3- Extra long cycle life: more than 4000 cycles @ 80% DOD @ 25℃






Item Description
Nominal Voltage 3.2V
Rated Capacity 100Ah
Dimensions 27*122*341mm
Weight 2.5kg
Internal Resistance ≤100mΩ
Charging Mode CC/CV
Standard Charging Current 0.2C
Max. constant charging current 0.5C
Standard discharging current 0.5C
Max. constant discharging current 1C
Cycle Life 4000 Cycles @ 100%DOD
Charge Temperature 0-45 ℃
Discharge Temperature -20-60 ℃

The data on the table is only for reference




Company advantages:

1. Advanced LiFePO4 battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected and do more than required.
