Product Details:
|
| Name: | LiFePO4 Battery Pack, Lithium-Ion Battery Pack, Customize Rechargeable Battery | Use: | EV, E-car, E-bikes, E-scooter, Motorcycle, Electric Wheelchair, UPS,, Power Tools, Solar System, LED |
|---|---|---|---|
| Feature: | High Energy Density, Long Cycle Life, Environmental Friendly, High Power | Nominal Volt: | 48v |
| Nominal Capacity: | 30Ah | Working Watts: | ≤3000W |
| High Light: | LiFePO4 Rechargeable Battery,Power Battery Pack |
||

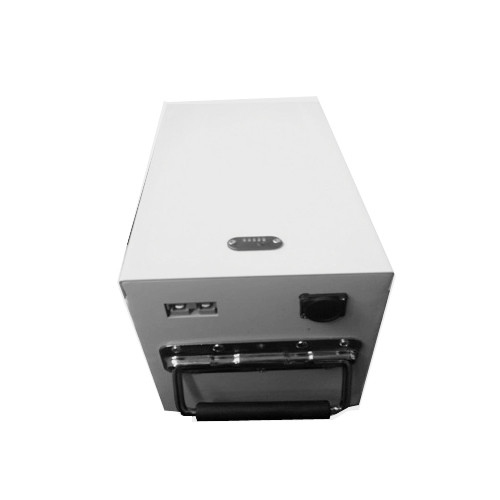

48V 30AH LiFePO4 Power battery , use for Rechargeable Motorcycle
Quick Detail:
1. Soft-pack LiFePO4 cells inside
2. Compact in size and light in weight
3. BMS manages to each cell for high reliability
4. Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
5. Extremely safe: No explosion, no fire under collision, over charged or short circuit
Description:
Polymer lithium ion batteries for electric scooter, e-motorcycle (48V 30ah)
Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.
Basic knowledge:
Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.
Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.
All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:
| Different Lithium Battery Material Comparision Table | |||||
| NO. | Parameters | Li-Co2 | Li-NiCoMn | Li-MnO2 | LiFePO4 |
| 1 | Energy density (g/cm3) | 2.8~3.0 | 2.0~2.3 | 2.2~2.4 | 1.0~1.4 |
| 2 | Specific area (m2/g) | 0.4~0.6 | 0.2~0.4 | 0.4~0.8 | 12~20 |
| 3 | Capacity density (Ah/kg) | 135~140 | 155~165 | 100~115 | 130~140 |
| 4 | Voltage | 3.7 | 3.6 | 3.6 | 3.2 |
| 5 | Cycle life | ＞300 | ＞800 | ＞500 | ＞2000 |
| 6 | Transition metal | Poor | Poor | Rich | Very rich |
| 7 | Material cost | Very high | High | Cheap | Cheap |
| 8 | Environmental performance | Contain Co | Contain Co & Ni | Non-toxic | Non-toxic |
| 9 | Safety performance | Bad | Good | Better | Excellent |
| 10 | Application area | Small battery | Small battery Small power battery | Power battery |
Power battery Large capacity power supply |
Applications:
electric bike, electric wheelchair, electric scooter, electric motorcycle, golf cart, electric robot, vacuum cleaner, electric mower, wind/solar energy storage ...
Specifications:
|
Battery material |
Lifepo4 |
|
Nominal Voltage |
48V |
|
Rated Capacity |
30Ah |
|
Pack Dimension |
200*264*320mm |
|
Internal Impedance |
≤80mΩ |
|
Charge Voltage |
36.8V~58.4V |
|
Charge Current |
6A~15A (0.2C~0.5C) |
|
Rated Constant Discharge Current |
30A(1C5A) |
|
Max. Constant Discharge Current |
60A(2C5A) |
|
Charging Mode |
CC/CV |
|
Pack weight |
About 18kg |
|
Over Current Protection |
Customized design |
|
Cycle Life |
At least 1200 Cycles |
|
Charge Temperature |
0-45 ℃ |
|
Discharge Temperature |
-20-55 ℃ |
|
Certificates |
CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001 |
|
The data on the table is only for reference |
|
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: 48v electric motorcycle battery, 48v lifepo4 power battery, 30ah lifepo4 power battery
