Hight Power 10C Discharge Rate LiFePO4 Battery Cell 26650 3.2V 3000mah

Product Details:
Place of Origin: China
Brand Name: HECO
Certification: MSDS, UN38.3, CE, IEC62133
Model Number: IFR26650-30P
Payment & Shipping Terms:
Minimum Order Quantity: 10K pcs
Price: Negotiable
Packaging Details: 80 ps/carton, carton size: 570*240*230mm
Delivery Time: Sample: within 3 days, bulk order:10~20 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 20Kpcs/day
Contact Now

Detail Information

Voltage: 3.2V Capacity: 3000mah

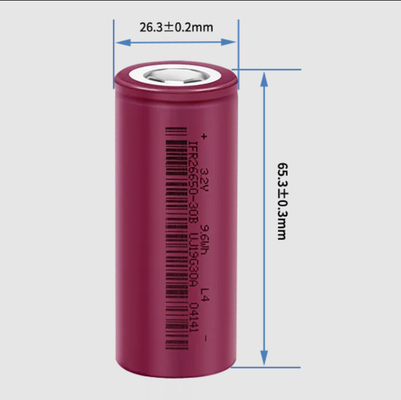

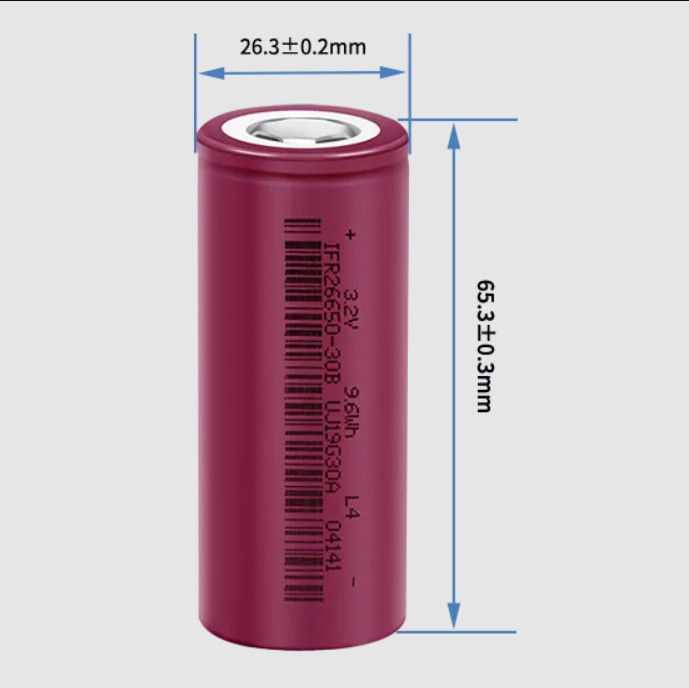

Dimensions: 26650 Weight: About 88g
Max. Constant Discharge Rate: 10C Max Constant Charge Rate: 3C

Product Description


Overview:
Cylindrical shape cell is the most cost-effective cell type since it is easy for mass production.  And due to its production technology is quite mature today, the cell quality can be well controlled. HECO cylindrical cells are mainly in 26650 size. The capacities are from 3000mah to 4000mah with both high energy type and high power type. Highest energy type cell can be 4000mah at max. constant 2C discharge rate. Highest power rate cell is 3000mah at max. constant 10C discharge rate. In 2020, Heco developped low-temperature cells which can support charge under -30℃ (at 0.2C charge rate) and can support discharge under -50℃(at 3C discharge rate) with 90% efficiency.


Description:

Hight Power 10C Discharge Rate LiFePO4 Battery Cell 26650 3.2V 3000mah

HECO IFR26650-30P cell is HECO specially developped for high power applications such as jump starter, power tools,etc. It can support 10C discharge rate and 3C charge rate.





Quick Detail:

1. Can support up to 10C constant discharge rate

2. Can support up to 3C constant charge rate

3. Long cycle life of 1500+ times under high power discharge

4. suitable for applications such as jump starter, power tools, etc
5. High saftey: no explosion, no fire



Technical Parameters:

Product Name 3.2V 26650 Cell
Model IFR26650-30P
Basic Specification
Chemical Lithium iron phosphate
Operation Voltage 2.0~3.65V
Nominal Capacity 3000mAh
Minimum Capacity 3000mAh
Cell AC Impedance(1KHz) <=9mΩ
Shipment Capacity About 50% SOC
Cell Weight About 85g
Cycle life 1500 cycles
Discharge specification
standard discharge rate 1C
Max. constant discharge rate 10C
Pluse discharge rate 30C(10s)
Charge specification
Standard charge rate 1C
Max. charge rate 3C






Discharge Curve VS Capacity under different C-rate
               Hight Power 10C Discharge Rate LiFePO4 Battery Cell 26650 3.2V 3000mah





Company Advantages:
 1. With advanced lifepo4 battery technology, Heco produces cells in all different shapes including cylindrical, pouch and prismatic so that HECO can offer solutions by selecting the most suitable cell models.

2. With more than 10+ years experience in lifepo4 battery production, Heco has a deep understanding of lifepo4 batteries.
3. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
4. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
5. Intimate and in time reacting service system. We always try to offer more than expected and do more than required.


Tag: low temperature lithium cell, low temperature lifepo4 cell
