Product Details:
|
| Nominal Capacity: | 10Ah | Nominal Voltage: | 12V |
|---|---|---|---|
| Battery Dimensions: | 85*50*150mm | Battery Weight: | About 0.8KG |
| Applications: | Portable Tennis Ball Machine, Small Solar System, Electric Robot |
Overview:
| Different Lithium Battery Material Comparision Table | |||||
| NO. | Parameters | Li-Co2 | Li-NiCoMn | Li-MnO2 | LiFePO4 |
| 1 | Energy density (g/cm3) | 2.8~3.0 | 2.0~2.3 | 2.2~2.4 | 1.0~1.4 |
| 2 | Specific area (m2/g) | 0.4~0.6 | 0.2~0.4 | 0.4~0.8 | 12~20 |
| 3 | Capacity density (Ah/kg) | 135~140 | 155~165 | 100~115 | 130~140 |
| 4 | Voltage | 3.7 | 3.6 | 3.6 | 3.2 |
| 5 | Cycle life | ＞300 | ＞800 | ＞500 | ＞2000 |
| 6 | Transition metal | Poor | Poor | Rich | Very rich |
| 7 | Material cost | Very high | High | Cheap | Cheap |
| 8 | Environmental performance | Contain Co | Contain Co & Ni | Non-toxic | Non-toxic |
| 9 | Safety performance | Bad | Good | Better | Excellent |
| 10 | Application area | Small battery | Small battery Small power battery | Power battery | Power battery Large capacity power supply |
Description:

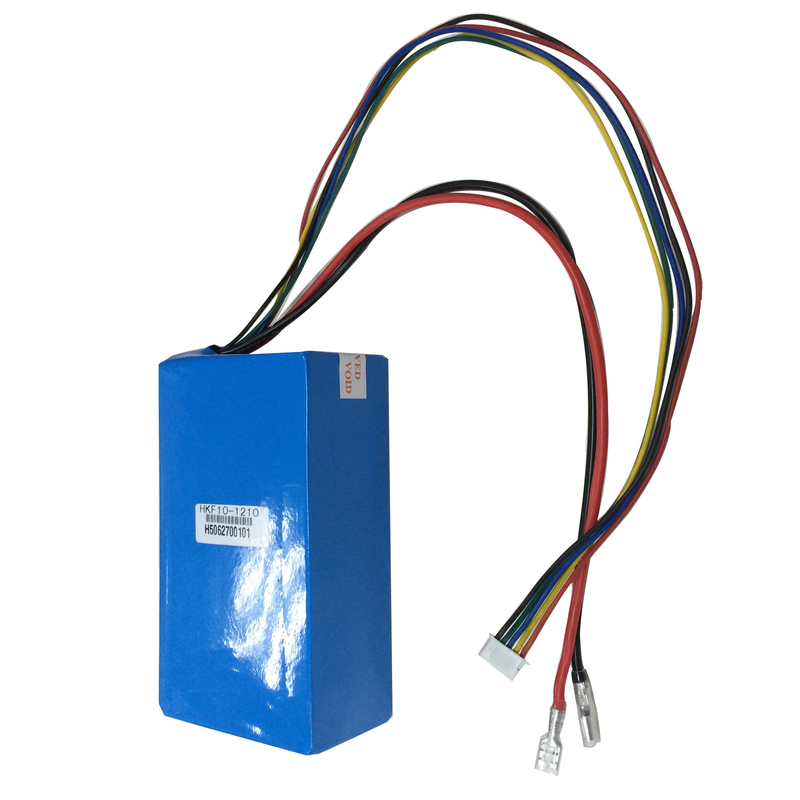

Light Weight 12V LiFePO4 Lithium Battery Pack For Measurement Instrument
This 12V 10Ah lifepo4 battery pack consists of 4 pcs 10ah LiFePO4 polymer cells via 4S1P with a smart 5A BMS.
It also can be made of 8pcs 26800-5ah lifepo4 cylindrical cells via 4S2P or 12pcs 2665-3400mah cylindrical cells via 4S3P. The dimensions will be a little bit larger than polymer solution.
Specifications:
|
Item |
Parameters |
|
Nominal Voltage |
12V |
|
Rated Capacity |
10Ah |
|
Pack Dimension |
85*50*150mm |
|
Internal Impedance |
≤80mΩ |
|
Max.Charge Voltage |
14.6V |
|
Standard Charge Current |
2A |
|
Discharge Cut-off Voltage |
9.2V |
|
Standard Discharge Current |
5A |
|
Max.Discharge Current |
10A |
|
Charging Mode |
CC/CV |
|
Pack weight |
About 1kg |
|
Over Current Protection |
20A |
|
Cycle Life |
≥2000 Cycles @ 80%DOD |
|
Charge Temperature |
0-60 ℃ |
|
Discharge Temperature |
-20-60 ℃ |
|
Certificates |
CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001 |
|
The data on the table is only for reference |
|
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: 12v lithium ion phosphate battery, 10ah lithium ion phosphate battery, 12V 10ah portable lithium batteries
