Product Details:
|
| Voltage: | 72V | Capacity: | 100Ah |
|---|---|---|---|
| Name: | LiFePO4 Battery Pack, Lithium-Ion Battery Pack, Customize Rechargeable Battery | Use: | EV, E-Car, E-Bikes, E-Scooter, Electric Motorcycle, Electric Wheelchair |
| Feature: | High Energy Density, Long Cycle Life, Environmental Friendly, High Power | ||
| High Light: | LiFePO4 Rechargeable Battery,Power Battery Pack |
||

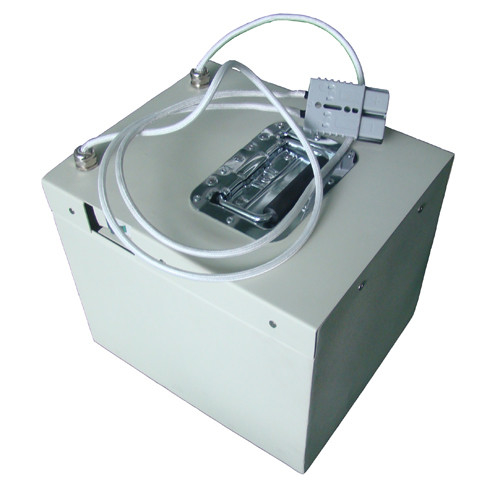

72V 100Ah LiFePO4 Power Battery For Electric Vehicle
Quick Detail:
1. Light weight, small size
2. 1200 charge/discharge cycles
3. Green battery
4. High-rate discharge
5. High security
Description:
72V 100Ah li-polymer batteries for electric vehicle/car
HECO has successfully developed LiFePO4 technology used on Electric Vehicle. Our LiFePO4 Batteries can offer high peak power even near the end depth of discharge, almost the same as fully charged state, which makes that electric vehicle has excellent performance with starting/accelerating/climbing. Also batteries could accept large charging current as energy regeneration when EV braking or reducing speed.
HECO Company brief introduction:
Specialize in the R & D of Lithium Iron Phosphate (LiFePO4) battery and other related products since 2008.
Provide LiFePO4 battery from 2Ah to 100Ah battery pack, battery management system (BMS) and battery charger as a complete solution since 2008.
HECO offer LiFePO4 Battery pack + BMS + Charger as a whole solution.
This complete solution is optimized by our engineering test on performance. We would offer entire system so that customer could just enjoy the convenience of usage.
Applications:
|
EV |
Mini E-car, e-bikes, e-scooter, e-motorcycles, Road Sweeper, golf cart, electric wheelchair, startup car battery |
|
UPS |
Telecom Base station, Lighting, Small Doctor instruments,Stand by Power, Mining lighting, LED torch, Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator, laser sensor |
|
Power tools |
Electric lawn mower, electric drill, electric vacuum cleaner, Electrical tools |
|
Power storage system |
Solar system, Solar pv system, Solar LED street light,Tidal energy, Wind / solar energy, on & off grid solar system |
Specifications:
|
Nominal Voltage |
72V |
|
Nominal Capacity |
100Ah |
|
Charge cut-off voltage |
86.4V |
|
Discharge cut-off voltage |
55.2V |
|
Self discharge rate |
≤5%(monthly) |
|
Charge method |
CV/CC |
|
Standard discharge current |
2C |
|
Max discharge current |
3C |
|
Internal resistance |
≤50mΩ |
|
Cycle life(1C/80%DOD) |
≥1200 cycles |
|
Weight |
About 80 kg |
|
Charge temperature |
0°C~45°C |
|
Discharge temperature |
-20°C~55°C |
OEM orders are welcome !
And different voltage and capacity is available!
Please feel free to contact us!
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: 72V electric car battery, electric vehicle batteries, 72V 100AH lifepo4 battery
