|Discharge Current:||100A||Charge Current:||100A|
Lithium-Ion Battery Pack,
LiFePO4 Battery Module

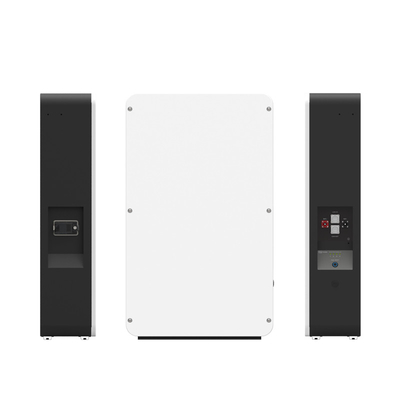

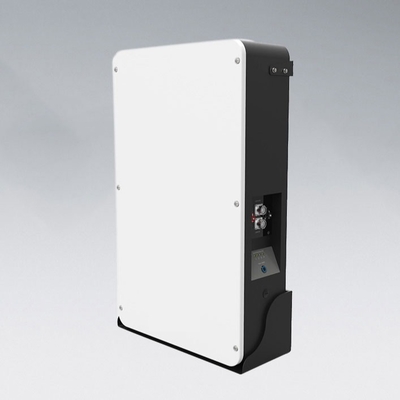

Powerwall series is composed of 2~4 modules of 48V 50AH in parallel. It is wall-mounted type which are popular in Europe and North America. The energy is from 5KWh to 10KWh. The cycle life can be 6000+cycles and we offer 10 years' warranty. The protection level can be up to IP65. For large energy models, please check Powercube series or Powertower series (High voltage).
|Battery Module Qty||2 Modules||3 Modules||4 Modules|
|Max Output Power||4.8kW||4.8kW||4.8kW|
|Weight||69kg (249 lbs)||91kg (200 lbs)||113kg (249 lbs)|
|Size||928*555*210 mm (36.5*21.8*8.3 inch)|
|Operating Temp. Range||-20~50℃|
|Cycle Life||6000 Cycles|
|Color||White, Silver (Customized)|

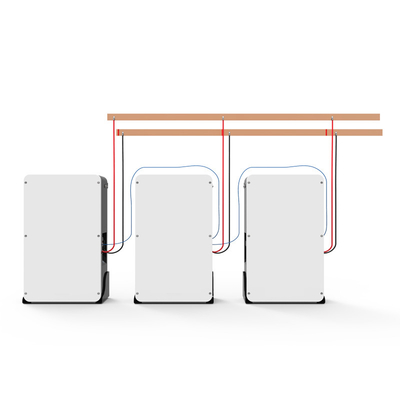

|Scalabilitty||Up to 4 units in parallel|
|The charge rate||0.5C|
|The discharge rate||0.5C|
|Certification||CE / UL / CEI 0-21 / CEC / TUV / UN38.3 / MSDS / ISO 9001|
|Compatible Inverters||Goodwe / Victron / Imeon / Solis / Luxpower / Voltronic / Deye / SAJ Etc.|
|Alarms||Overcharge / Overdischarge / Overcurrent / Overtemperature / Short Circuit|
|Pros||Can be used in both off-grid and hybrid setups, compact design, modular expansion|
|Monitoring & Protection||Each module has BMS, breaker embedded in system|
7 & 10 Years
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: powerwall 10kwh, powerwall 48v 200ah, 10kwh lifepo4 battery wall mounted
