48V 300AH Lithium Battery For Electric Robot , Lithium Power Battery For Automatic Guided Vehicle

China 48V 300AH Lithium Battery  For Electric Robot , Lithium Power Battery For Automatic Guided Vehicle supplier

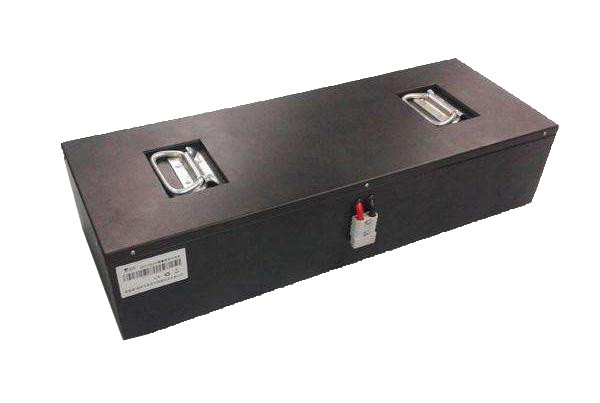

Large Image :  48V 300AH Lithium Battery For Electric Robot , Lithium Power Battery For Automatic Guided Vehicle

Product Details:

Place of Origin: China
Brand Name: HECO
Certification: CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
Model Number: HC-ESL-48F300-C

Payment & Shipping Terms:

Minimum Order Quantity: 10 units
Price: Negotiable
Packaging Details: wooden case
Delivery Time: Sample: within 25 days;bulk order:30~60 days, based on the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 1000 packs/ month
Contact Now
Detailed Product Description
Feature: High Energy Density, Long Cycle Life, Environmental Friendly, High Power Use: Solar Energy System, Wind Energy Storage, Comminication UPS System, Emergency Lighting, Navigation L
Nominal Voltage: 48V Nominal Capacity: 300AH
Dimensions: Custom Design Weight: 160KG
Max. Continuous Output Watts: 10KW




48V 300AH Lithium Battery For Electric Robot , Lithium Power Battery For Automatic Guided Vehicle



Quick Detail:

With the emergence of wind & solar power and other new energy sources, the development of intelligent grid technology as well, large -scale energy storage station is becoming to meet peak power allocation. HECO is developing he environmental-protection  lithium-ion energy storage battery with the lightest,

fast charge and discharge, cycle file more than than 2,000 times to meet the future demand of energy

storage stations and new energy vehicle charging stations. HECO strives to become an advanced enterprise in the energy storage battery industry field.
HECO 12V &24V standard lithium ion battery with excellent safety,high energy density, cell voltage detection, which could be connected with BMS to monitor the matter as well, which is most suitable for energy storage battery.


Description:

Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life,

also most the same in weight & size.




Specifications:

Item

Parameters

Remark

Nominal voltage

48V



Nominal capacity

300Ah

0.2C5A discharge

Internal Impedance

<100mΩ

 AC Imp

Max Charge voltage

58.4V



Discharge Cut-off Voltage

>38V



Max. Continuous Charge current

100A

or customized design

Max. Continuous discharge current

120A

or customized design

Over-current protection

300A

or customized design

 Battery housing

painted iron housing



Dimensions(L*W*H)

460*350*300mm

or customized design

Weight(Kg)

About 60 Kg



Charge/discharge port

Anen connector



charging method

standard

0.2C×6 hrs.(reference value)

(CC/CV)



Fast

0.5C×3 hrs.(reference value)



Working temperature

 Charge

0℃~+45℃





Discharge

-20℃~+55℃



Storage Temperature

-40℃~+40℃



Storage humidity

5%~90% RH







            48V 300AH Lithium Battery  For Electric Robot , Lithium Power Battery For Automatic Guided Vehicle




Product advantages:
1. Long cycle life (1200 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.

Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.


Tag: AGV lithium battery , 48V 300AH lithium battery , robot lithium battery
